KD700 Series Book Type High-Performance Vector Inverter
KD700 Catalogue DownloadProduct Features
- Safety and reliability (Safty at KD700E has the highest priority since we understand they are dedicated for passenger elevators.
- Through enable signal, the drive will enable the run of the motor only when the motor run contactor, all safty contactors are well closed. 220V AC UPS power supply, emergency speed, and inspection speed are supported or programmable at KD700E series, a full coverage on the safty requirement at the drive side.）
- Dedecated control sequence (Lift dedicated control sequence, big output torque at low frequency of V/Hz mode, and fast response time make the elevator motion stable and smooth.)
- Commendable leveling (Fast response time, programmable S-curve, slip compensation separated for elevator uplink or downlink make the car a commendable leveling for different motor brands.)
- Silky smoothness (Smoothness at the start and stop is quite important and the main reason for the users to select the drive or not. KD700E have a lot of approaches to program the smoothness at the start and stop, like smooth start frequency, DC injection brake, torque boost, V/Hz mode, brake sequency, and so forth.)
- Emergency and inspection speed programmable (If the grid power supply is suddenly lost, the drive will get into emergency mode and run at the emergency speed via UPS power supply. Inspection speed can also be programmed via multi-speed selections.)
- STO Function Built In (Compliant with IEC 62061-SIL3, Enhancing safety by immediately shutting off torque output to the connected motor, making it an effective measure for preventing accidents in industrial settings.)
Technical Details
|
Input Voltage |
208~240V single phase & three phase |
|
380~480V three phase |
|
|
Output Frequency |
0~1200Hz V/F |
|
0~600HZ FVC |
|
|
Control Technology |
V/F , FVC,SVC, Torque Control |
|
Overload capability |
150%@rated current 60S |
|
180%@rated current 10S |
|
|
200%@rated current 1S |
|
|
Simple PLC support max 16-steps speed control |
|
|
Communication |
MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG |

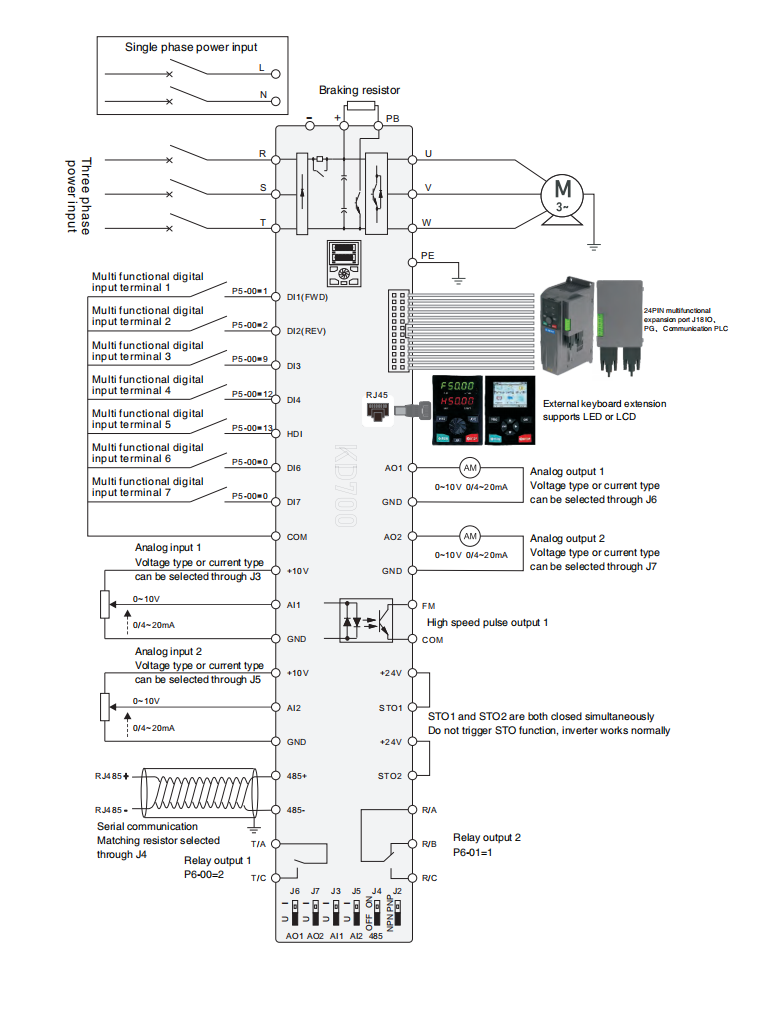

Basic Wiring Diagram
Model & Dimension
| AC Drive Model | Adapter
motor (KW) |
Rated
Input Current(A) |
Rated
Output Current(A) |
Installation
size (mm) |
Dimensions
(mm) |
Aperture | |||
| A | B | H | W | D | d | ||||
|
Input voltage:Single-phase 220V Range:-15%~20% |
|||||||||
| KD700-2S-0.4GB | 0.4 | 5.4 | 2.3 | 66 | 190 | 200 | 80 | 138 | 4.5 |
| KD700-2S-0.75GB | 0.75 | 8.2 | 4.0 | ||||||
| KD700-2S-1.5GB | 1.5 | 14.0 | 7.0 | ||||||
| KD700-2S-2.2GB | 2.2 | 23.0 | 9.6 | ||||||
| KD700-2S-4.0GB | 4.0 | 40.0 | 17.0 | 80 | 250 | 260 | 98 | 170 | 4.5 |
| KD700-2S-5.5GB | 5.5 | 60.0 | 25.0 | 90 | 300 | 310 | 115 | 187 | 5.5 |
| KD700-2S-7.5GB | 7.5 | 75.0 | 32.0 | ||||||
|
Input voltage:Three-phase 220V Range:-15%~20% |
|||||||||
| KD700-2T-0.4GB | 0.4 | 2.7 | 2.1 | 66 | 190 | 200 | 80 | 138 | 4.5 |
|
KD700-2T-0.75GB
|
0.75 | 4.2 | 3.8 | ||||||
|
KD700-2T-1.5GB
|
1.5 | 7.7 | 7.0 | ||||||
|
KD700-2T-2.2GB
|
2.2 | 12.0 | 9.0 | ||||||
|
KD700-2T-4.0GB
|
4.0 | 19.0 | 17.0 | 80 | 250 | 260 | 98 | 170 | 4.5 |
|
KD700-2T-5.5GB
|
5.5 | 28.0 | 25.0 | 90 | 300 | 310 | 115 | 187 | 5.5 |
|
KD700-2T-7.5GB
|
7.5 | 35.0 | 32.0 | ||||||
|
KD700-2T-11GB
|
11 | 47.0 | 45.0 | 140 | 384 | 395 | 165 | 210 | 6 |
|
KD700-2T-15GB
|
15 | 65.0 | 60.0 | 160 | 425 | 440 | 220 | 220 | 7 |
|
KD700-2T-18.5GB
|
18.5 | 80.0 | 75.0 | ||||||
|
KD700-2T-22G
|
22 | 97.0 | 90.0 | 160 | 535 | 550 | 145 | 255 | 7 |
|
KD700-2T-30G
|
30 | 115.0 | 110.0 | 200 | 640 | 660 | 265 | 305 | 10 |
|
KD700-2T-37G
|
37 | 166.0 | 152.0 | ||||||
|
KD700-2T-45G
|
45 | 190.0 | 176.0 | 200 | 765 | 785 | 300 | 305 | 10 |
|
KD700-2T-55G
|
55 | 214.0 | 210.0 | ||||||
|
KD700-2T-75G
|
75 | 307.0 | 304.0 | 280 | 815 | 835 | 340 | 325 | 10 |
|
KD700-2T-93G
|
93 | 389.0 | 377.0 | 300 | 895 | 915 | 410 | 370 | 12 |
|
KD700-2T-110G
|
110 | 435.0 | 426.0 | ||||||
|
KD700-2T-132G
|
132 | 468.0 | 465.0 | 320 | 995 | 1015 | 470 | 385 | 12 |
|
KD700-2T-160G
|
160 | 590.0 | 585.0 | 500 | 1115 | 1135 | 640 | 395 | 12 |
|
KD700-2T-200G
|
200 | 785.0 | 725.0 | ||||||
|
KD700-2T-220G
|
220 | 883.0 | 820.0 | ||||||
|
Input voltage:Three-phase 380V Range:-15%~20% |
|||||||||
| KD700-4T-0.75GB/1.5PB | 0.75 | 3.4/5.0 | 2.1/3.8 | 66 | 190 | 200 | 80 | 138 | 4.5 |
| KD700-4T-1.5GB/2.2PB | 1.5 | 5.0/5.8 | 3.8/5.1 | ||||||
|
KD700-4T-2.2GB/4.0PB
|
2.2 | 5.8/10.5 | 5.1/9.0 | ||||||
| KD700-4T-4.0GB/5.5P | 4.0 | 10.5/14.6 | 9.0/13.0 | 80 | 250 | 260 | 98 | 170 | 4.5 |
|
KD700-4T-5.5GB/7.5PB
|
5.5 | 14.6/20.5 | 13.0/17.0 | ||||||
|
KD700-4T-7.5GB/11PB
|
7.5 | 20.5/26.0 | 17.0/25.0 | ||||||
|
KD700-4T-11GB/15PB
|
11 | 26.0/35.0 | 25.0/32.0 | 90 | 300 | 310 | 115 | 187 | 5.5 |
|
KD700-4T-15GB/18.5P
|
15 | 35.0/38.5 | 32.0/37.0 | ||||||
|
KD700-4T-18.5GB/22PB
|
18.5 | 38.5/46.5 | 37.0/45.0 | 140 | 384 | 395 | 165 | 210 | 6 |
|
KD700-4T-22GB/30PB
|
22 | 46.5/62.0 | 45.0/60.0 | ||||||
|
KD700-4T-30GB/37PB
|
30 | 62.0/76.0 | 60.0/75.0 | 160 | 425 | 440 | 220 | 220 | 7 |
| KD700-4T-37GB/45PB | 37 | 76.0/92.0 | 75.0/90.0 | ||||||
|
KD700-4T-45G(B)/55P(B)
|
45 | 92.0/113.0 | 90.0/110.0 | 160 | 535 | 550 | 145 | 255 | 7 |
|
KD700-4T-55G(B)/75P(B)
|
55 | 113.0/157.0 | 110.0/152.0 | 200 | 640 | 660 | 265 | 305 | 10 |
| KD700-4T-75G(B)/93P(B) | 75 | 157.0/180.0 | 152.0/176.0 | ||||||
|
KD700-4T-93G(B)/110P(B)
|
93 | 180.0/214.0 | 176.0/210.0 | 200 | 765 | 785 | 300 | 305 | 10 |
|
KD700-4T-110G(B)/132P(B)
|
110 | 214.0/256.0 | 210.0/253.0 | ||||||
|
KD700-4T-132G(B)/160P(B)
|
132 | 256.0/307.0 | 253.0/304.0 | 280 | 815 | 835 | 340 | 325 | 10 |
|
KD700-4T-160G(B)/185P(B)
|
160 | 307.0/345.0 | 304.0/340.0 | ||||||
| KD700-4T-185G/200P | 185 | 345.0/385.0 | 340.0/377.0 | 300 | 895 | 915 | 410 | 370 | 12 |
|
KD700-4T-200G/220P
|
200 | 385.0/430.0 | 377.0/426.0 | ||||||
|
KD700-4T-220G/250P
|
220 | 430.0/468.0 | 426.0/465.0 | ||||||
| KD700-4T-250G/280P | 250 | 468.0/525.0 | 465.0/520.0 | 320 | 995 | 1015 | 470 | 385 | 12 |
| KD700-4T-280G/315P | 280 | 525.0/590.0 | 520.0/585.0 | ||||||
|
KD700-4T-315G/355P
|
315 | 590.0/665.0 | 585.0/650.0 | 500 | 1115 | 1135 | 640 | 395 | 12 |
|
KD700-4T-355G/400P
|
355 | 665.0/785.0 | 650.0/725.0 | ||||||
|
KD700-4T-400G/450P
|
400 | 785.0/883.0 | 725.0/820.0 | ||||||
| KD700-4T-450G/500P | 450 | 883.0/920.0 | 820.0/900.0 | ||||||
|
KD700-4T-500G/550P
|
500 | 920.0/1020.0 | 900.0/1000.0 | / | / | 1800 | 800 | 500 | Vertical |
|
KD700-4T-550G/630P
|
550 | 1020.0/1120.0 | 1000.0/1100.0 | ||||||
|
KD700-4T-630G
|
630 | 1200 | 1150 | ||||||
|
KD700-4T-710G
|
710 | 1315 | 1215 | / | / | 2200 | 1100 | 600 | Vertical |
| KD700-4T-800G | 800 | 1560 | 1450 | ||||||
| KD700-4T-900G | 900 | 1760 | 1710 | / | / | 2300 | 1300 | 600 | Vertical |
|
KD700-4T-1000G
|
1000 | 1960 | 1900 | ||||||
